Rockshox Brain 2.0 and 3.0 Kit
This product is unavailable

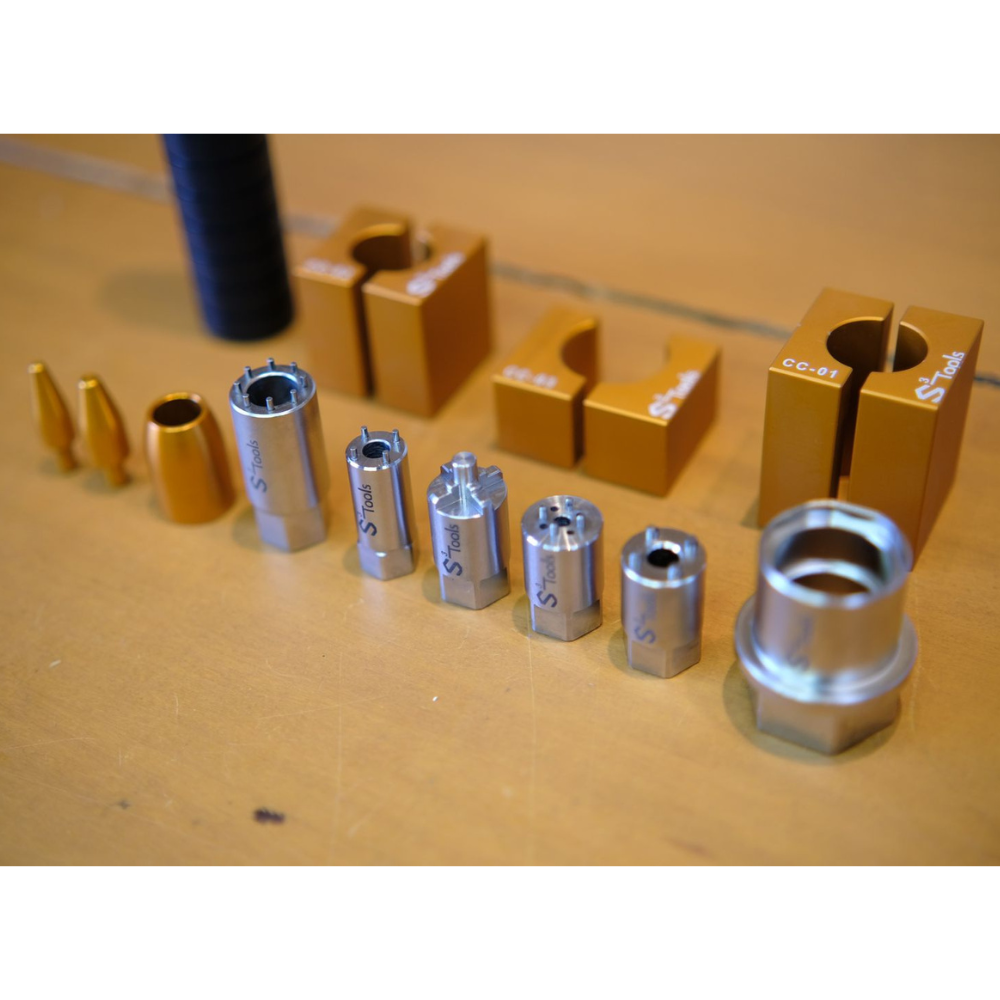

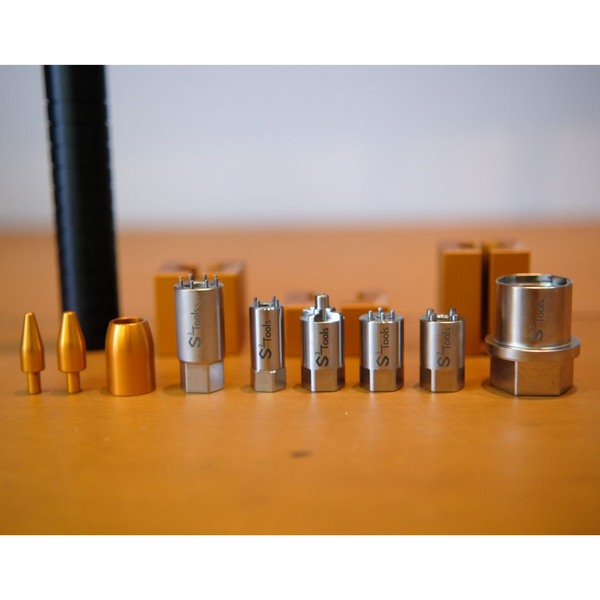

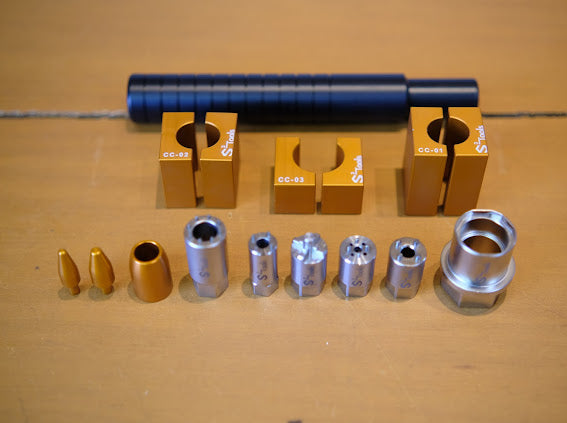

Rockshox Brain 2.0 and 3.0 Rear Suspension Tool Complementary Set
ASB-01 (Air Seal Bullet) - Bullet-shaped tool to guide the fitting of the air chamber. This tool is used to guide the fitting of the air chamber into the shock absorber body in order to expand and protect the seals, covering the threads and edges that could damage them.
OSB-02 - (Bullet 12mm) - Tool for fitting the seal head (Oil Seal Bullet) onto the Rockshox Brain 2.0 shock absorber rod - S-Tres
OSB-03 - (Bullet 10mm) - Tool for fitting the seal head (Oil Seal Bullet) onto the Rockshox Brain 3.0 shock absorber rod - S-Tres
BOPT-01 - Rockshox Brain 2.0 Blow-off Piston/Valve Removal Tool This tool is used to remove the blow-off piston/valve when it gets stuck in the reservoir body during the disassembly of the upper part of the inertia valve.
RTT-01 - Tool for disassembling/reassembling the inertia valve reservoir (Resi Torque Tool 4 PINS) Brain 3.0
CVT-01 - Tool for disassembling/reassembling the non-return/check valve of the Rockshox Brain 3.0 This tool is used to disassemble/reassemble the check valve after removing the floating piston chamber body (IFP Chamber Body).
LT-01 - Leverage Tool for Rockshox Brain 2.0 and 3.0 Inertia Valve Reservoir Leverage tool for disassembling/reassembling the inertia valve reservoir of the Rockshox Brain 2.0 and 3.0 This tool is used to disassemble/reassemble the inertia valve reservoir of the Brain 2.0 after removing the bladder. This tool can also be used as a lever to separate the reservoir (after removing the inertia valve) from the floating piston chamber of the Brain 3.0.
CC-01 (RS 2.0 and 3.0) Extra long 20.5mm clamp to fix the shock body. It is used to release the YOKE (interface between the shock body and the bike's swingarm) and also the head seal (sealed) when the body comes loose at the bottom.
CC-02 (RS 3.0) 20mm long clamp to fix and release the IFP tube with the help of the lever tool (LT-01) CC-03 (RS 2.0 and 3.0) 26.7mm modified clamp to fix the RS 3.0 inertia valve reservoir and release it with the tool
RTT-01. Also used to fix the bladder reservoir of the RS 2.0. Important: This clamp needs to be correctly positioned on the parts to be fixed.
APS-01 Tool for disassembling/reassembling the air piston of the Rockshox Brain 2.0 and 3.0 This tool is used to disassemble/reassemble the air piston and remove the air cam to access the hydraulic part of the shock absorber.
IVT-02 Tool for disassembling/reassembling the upper part of the inertia valve of the Rockshox Brain 2.0 This tool is used to disassemble/reassemble the upper part of the inertia valve after releasing it from the reservoir body.
ST-01 8-pin tool for disassembling/reassembling the sealhead of the Rockshox Brain 2.0 and 3.0 This tool is used to disassemble/reassemble the sealhead after removing the air piston.
